1. • 品名：
   • Flow analysis
2. • 1.：
   • assymetric handle halves, 50% fill
3. • 2.：

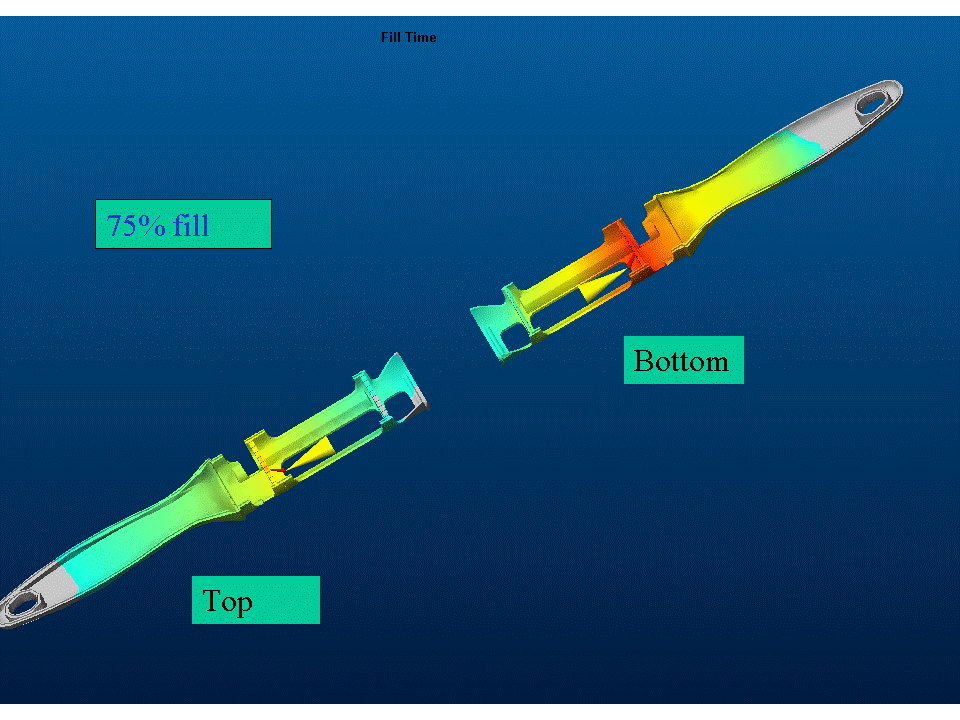

   • assymetric handle halves, 75% fill
4. • 3.：

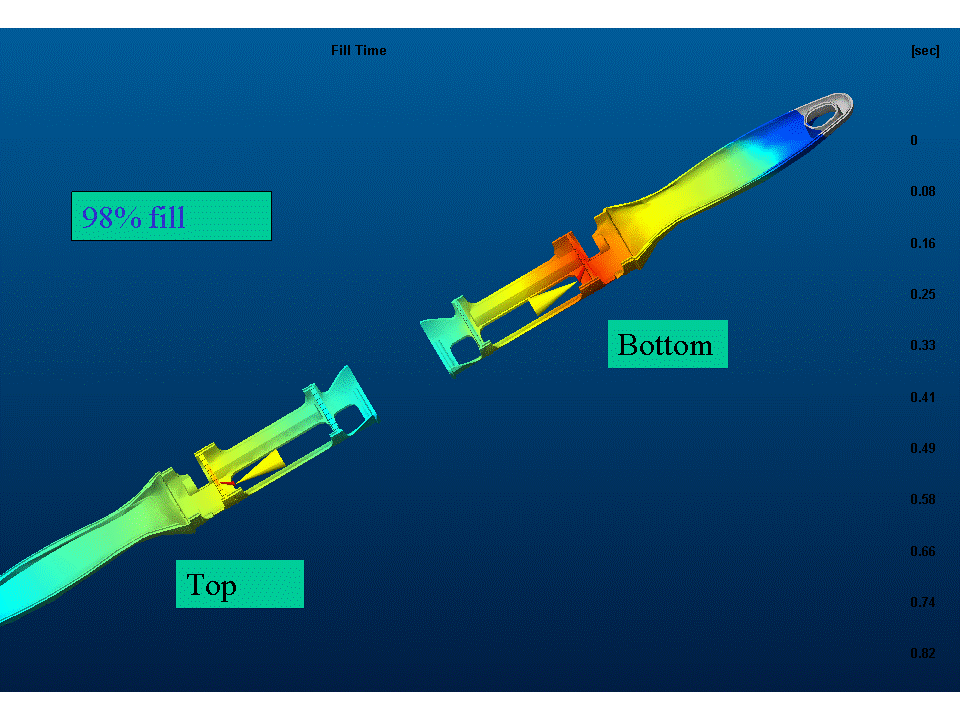

   • assymetric handle halves, 98% fill
5. • 4.：
   • assymetric handle halves, 100% fill

• Description：

• Due to the different geometry of sonic welding line, the family mold will need to go through flow analysis, so as to enabling tweaking of the parts wall thickness, thereby arriving a flow balance.
